Air Cooled Industrial Cold Room Condenser With V Type Condenser Coils

Ask Lasest Price
Brand Name :	Kailaili
Model Number :	FV-300
Certification :	CE, ISO9001:2000
Price :	$1090~1147 per pcs
Supply Ability :	1000 pcs per month
Delivery Time :	30 days after payment

Add to Cart

Product Details
Company Profile

Air Cooled Industrial Cold Room Condenser With V Type Condenser Coils

Product Description

V type air cooled condenser

1. MOQ:1PCS
2. Payment: 30%TT in advance,70% see the B/L copy
3: Delivery time: within one month after receive the payment.
4. Port of loading: Ningbo port.

Product feature:

1: Cover an small area and saving space.
2: Top outlet air flow,fan is equipped with one to four motors.uniform heat dissipation,can be matched in hermetic and semi-hermetic condensing unit
3: Applicable to a wide range of cooling capacity.

FV Type outlet on the condenser Technical parameter:

Model	Heat exchange (KW)	Surface (㎡)	Fan motor						Interface pipe dia		cooper pipe arrangement
Model	Heat exchange (KW)	Surface (㎡)	Qty	Dia (mm)	Air volume (m³)	Power(w)	Voltage (v)	Rotation speed (rpm)	Air inlet (mm)	Liquid outlet (mm)	cooper pipe arrangement
FNV-100	29.5	100	2	500	5800*2	380	380	1380	28	19	3*12
FNV-120	36.9	120	2	500	5800*2	380	380	1380	28	19	4*12
FNV-160	41.4	160	2	500	5800*2	380	380	1380	28	19	4*12
FNV-180	47.5	180	2	500	6500*2	600	380	1380	28	19	4*14
FNV-200	52.5	200	2	600	7800*2	750	380	1380	32	25	4*16
FNV-220	58.5	220	2	600	7800*2	750	380	1380	32	25	4*16
FNV-240	64.1	240	2	600	7800*2	750	380	1380	32	25	4*16
FNV-260	70.5	260	3	550	6500*3	600	380	1380	32	25	4*16
FNV-280	76	280	3	550	6500*3	600	380	1380	32	25	4*16
FNV-300	82.5	300	3	600	7800*3	750	380	1380	38	28	4*16
FNV-320	88.5	320	3	600	7800*3	750	380	1380	38	28	4*16
FNV-360	97.5	360	3	600	7800*3	750	380	1380	38	28	4*16
FNV-400	108	400	3	630	10000*3	800	380	1380	50	32	4*18
FNV-450	121.5	450	3	630	10000*3	800	380	1380	50	32	4*18

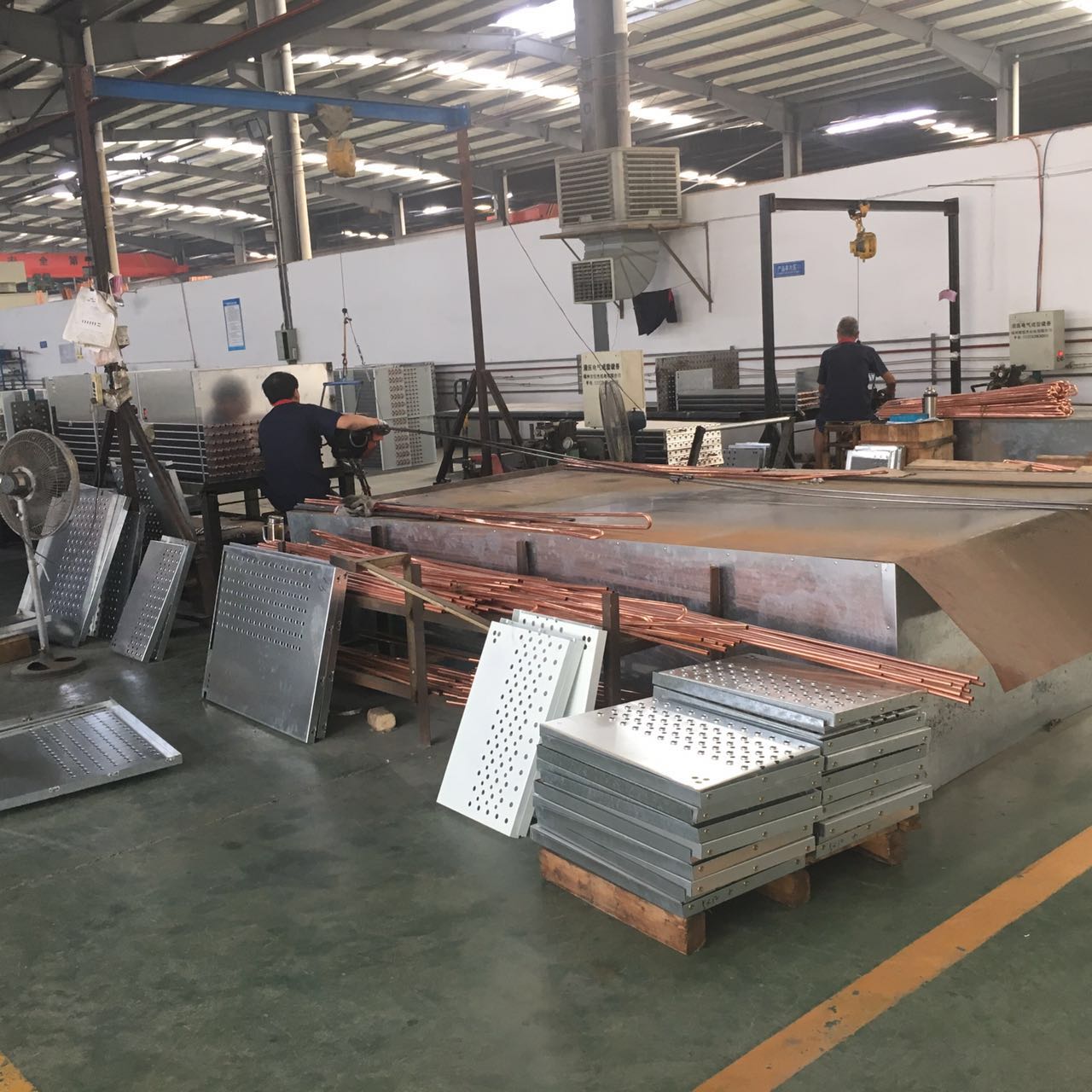

Photo shows:

Kailaili Refrigeration System is widely used in food, supermarkets, hotels, aquatic products, pharmaceutical, biological, chemical, industrial and mining enterprises and other industries. It can be customized according to customer requirements and library features, the constant pursuit of excellence, has the ability to meet the special requirements of customers, to win customer satisfaction.

If you have any quick freezing cold room project, please send us detailed information, including: cold room sizes, designed freezing room temperature, usage, load capacity and building drawing...

Our experienced engineer will give you a full, scientific and most economical solution.

If you have any further questions or requests, please feel free to contact us.

OEM and customizing service welcomed.
