Factory Price!!! DL-40 Air Unit Cooler/ Ceiling mounted side outlet evaporator (with electric defrosting)

Zhejiang XinRui Brazing Technology Co.,Ltd.
Contact Now
    Buy cheap Factory Price!!! DL-40 Air Unit Cooler/ Ceiling mounted side outlet evaporator (with electric defrosting) from wholesalers

    Buy cheap Factory Price!!! DL-40 Air Unit Cooler/ Ceiling mounted side outlet evaporator (with electric defrosting) from wholesalers
    • Buy cheap Factory Price!!! DL-40 Air Unit Cooler/ Ceiling mounted side outlet evaporator (with electric defrosting) from wholesalers

    Factory Price!!! DL-40 Air Unit Cooler/ Ceiling mounted side outlet evaporator (with electric defrosting)

    Ask Lasest Price
    Brand Name : Kailaili
    Model Number : DL-40
    Certification : CE, ISO
    Price : $258~272 per pcs
    Supply Ability : 50000sets per year
    Delivery Time : 20~30 work days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    Factory Price!!! DL-40 Air Unit Cooler/ Ceiling mounted side outlet evaporator (with electric defrosting)

    Product features:


    DL Type is used for more than a cold storage temperature is -5 DEG C, cooling capacity range 2.25~200KW.


    1. Kailaili Air Cooler sheet metal pasrt series all use hydraulic or hydraulic punch one-time punched,good appearance,strength structure.
    2. Sheet metal parts are crimped aluminum,spay plate,stainless steel plate can be choosed.
    3. Use strong insulating U tubular heater pipe,short defrosting time,high efficiency,also can according customer's request to choose the water defrosting or hot freon defrosting.
    4. Coil pipe use the thickness cooper tube, improve the service life, aluminum fin use hign efficiency aluminum sheet, through the pipe expansion and impinges on the cooper tube, the effect of heat transfer increase to the top.
    5. Using hign efficiency fan, big air volume, far range, low noise, low power consumption, long service life, hign reliability.
    6. Product all through the holding pressure filling nitrogen before product leave the factory

    Kailaili Refrigeration System is widely used in food, supermarkets, hotels, aquatic products, pharmaceutical, biological, chemical, industrial and mining enterprises and other industries. It can be customized according to customer requirements and library features, the constant pursuit of excellence, has the ability to meet the special requirements of customers, to win customer satisfaction.

    DL Techniacal parameter:

    ModelRef capacity(kw)Cooling area (㎡)Fin spacing(mm)Fan motorDefrost heater
    QtyDia(mm)Air volume (m³)Pressure(pa)Power(w)voltage(v)Coil(kw)Catchment(kw)Power supply
    DL-4.2/204.2204.523502*230090150w380v/50hz11220v/50hz
    DL-5.2/255.22523502*230090150w21
    DL-8.2/408.24024002*3200100200w2.41.2
    DL-11.5/5511.55524002*3200100200w2.41.2
    DL-16.7/8016.78025002*6000167550w31.5
    DL-21.9/10521.910525002*6000167550w31.5
    DL-25.8/12525.812535003*6000167550w3.21.6
    DL-33.6/16033.616035003*6000167550w3.41.7
    DL-38.7/18538.718545004*6000167550w42
    DL-44/2104421045004*6000167550w4.42.2
    DL-52.9/26052.926026002*100002501.5kw9.61.6
    DL-67.2/34067.234036003*100002501.5kw10.21.7
    DL-83.4/41083.440036003*100002501.5kw122
    DL-92.4/47092.246046004*100002501.5kw13.22.2
    DL-112/55011255046004*100002501.5kw13.12.2

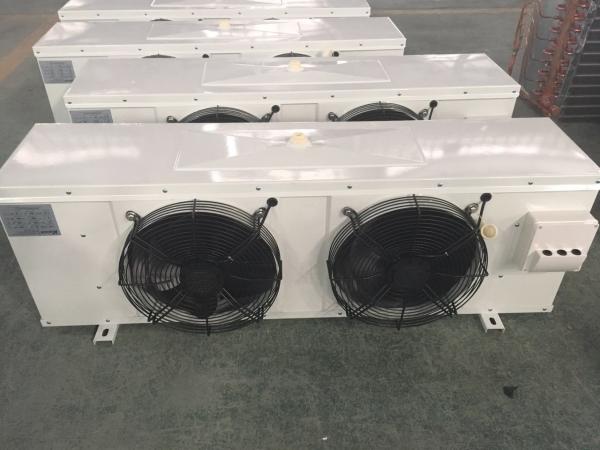

    Photo shows:






    Quality Factory Price!!! DL-40 Air Unit Cooler/ Ceiling mounted side outlet evaporator (with electric defrosting) for sale
