Zhejiang XinRui Brazing Technology Co.,Ltd. We are manufactor ,Best quality,Best services! Contact us: Michelle +86 18457540188
9 Years
| Ask Lasest Price | |
| Brand Name : | Kailaili |
| Model Number : | DD-250 |
| Certification : | CE, ISO |
| Price : | $1667~1800 per pcs |
| Payment Terms : | T/T |
| Supply Ability : | 50000sets per year |
| Delivery Time : | 20~30 work days |
Product features:
DD Type is used for more than a cold storage temperature is -18 DEG C, cooling capacity range 1.5~200KW.
1. Kailaili Air Cooler sheet metal pasrt series all use hydraulic
or hydraulic punch one-time punched,good appearance,strength
structure.
2. Sheet metal parts are crimped aluminum,spay plate,stainless
steel plate can be choosed.
3. Use strong insulating U tubular heater pipe,short defrosting
time,high efficiency,also can according customer's request to
choose the water defrosting or hot freon defrosting.
4. Coil pipe use the thickness cooper tube, improve the service
life, aluminum fin use hign efficiency aluminum sheet, through the
pipe expansion and impinges on the cooper tube, the effect of heat
transfer increase to the top.
5. Using hign efficiency fan, big air volume, far range, low noise,
low power consumption, long service life, hign reliability.
6. Product all through the holding pressure filling nitrogen before
product leave the factory
Kailaili Refrigeration System is widely used in food, supermarkets,
hotels, aquatic products, pharmaceutical, biological, chemical,
industrial and mining enterprises and other industries. It can be
customized according to customer requirements and library features,
the constant pursuit of excellence, has the ability to meet the
special requirements of customers, to win customer satisfaction.
DD Techniacal parameter:
| Model | Ref capacity(kw) | Cooling area (㎡) | Fin spacing(mm) | Fan motor | Defrost heater | |||||||
| Qty | Dia(mm) | Air volume (m³) | Pressure(pa) | Power(w) | voltage(v) | Coil(kw) | Catchment(kw) | Power supply | ||||
| DD-3.0/15 | 3 | 14.5 | 6 | 2 | 350 | 2*2300 | 90 | 150w | 380v/50hz | 1 | 1 | 220v/50hz |
| DD-4.0/22 | 4 | 22.5 | 2 | 350 | 2*2300 | 90 | 150w | 2 | 1 | |||
| DD-6.0/30 | 6 | 29.5 | 2 | 400 | 2*3200 | 100 | 200w | 2.4 | 1.2 | |||
| DD-8.0/40 | 8 | 40 | 2 | 400 | 2*3200 | 100 | 200w | 2.4 | 1.2 | |||
| DD-12.0/60 | 12 | 60 | 2 | 500 | 2*6000 | 167 | 550w | 4.5 | 1.5 | |||
| DD-15.9/80 | 15.9 | 80 | 2 | 500 | 2*6000 | 167 | 550w | 6 | 1.5 | |||
| DD-20.0/100 | 20 | 100 | 3 | 500 | 3*6000 | 167 | 550w | 6.4 | 1.6 | |||
| DD-24.0/120 | 24 | 120 | 3 | 500 | 3*6000 | 167 | 550w | 6.8 | 1.7 | |||
| DD-28/140 | 28 | 140 | 4 | 500 | 4*6000 | 167 | 550w | 8 | 2 | |||
| DD-32/160 | 32 | 160 | 4 | 500 | 4*6000 | 167 | 550w | 8.8 | 2.2 | |||
| DD-37.4/200 | 37.4 | 199 | 2 | 600 | 2*10000 | 250 | 1.5kw | 12.8 | 1.6 | |||
| DD-46.8/250 | 46.8 | 250 | 3 | 600 | 3*10000 | 250 | 1.5kw | 13.6 | 1.7 | |||
| DD-56.2/310 | 56.2 | 298 | 3 | 600 | 3*10000 | 250 | 1.5kw | 16 | 2 | |||
| DD-70.2/360 | 70.2 | 350 | 4 | 600 | 4*10000 | 250 | 1.5kw | 17.6 | 2.2 | |||
| DD-81/400 | 81 | 401 | 4 | 600 | 4*10000 | 250 | 1.5kw | 21 | 2.2 | |||

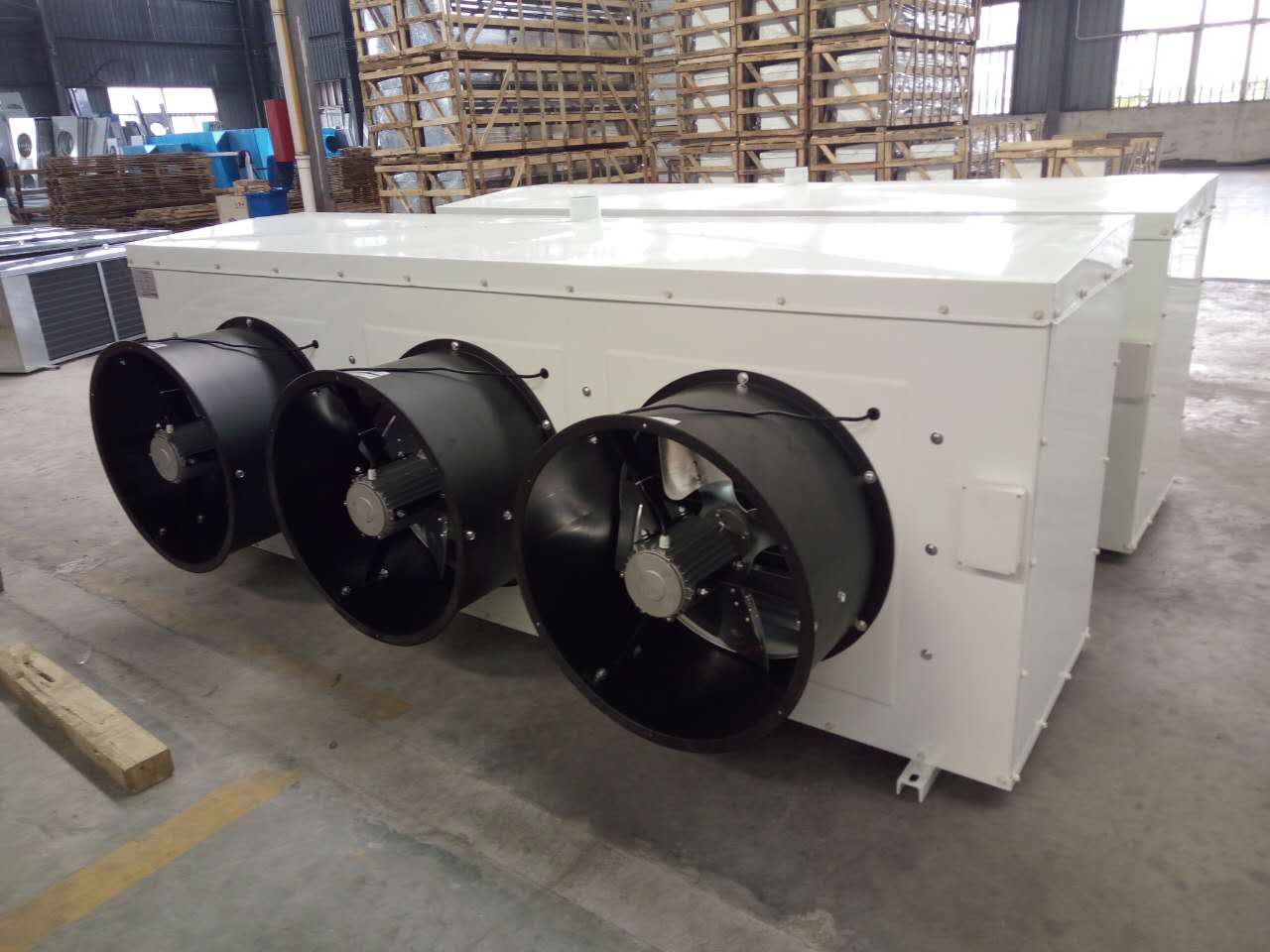

Photo shows:
FAQ:
Q1: Are you a factory or a trading company?
A1: We are a factory.
Q2: Where is your factory located?
A2: Our factory is located in Shengzhou City, Zhejiang province,
you can go there by plane to Hangzhou international airport, it is
about 100 km from airport to our factory.
Q3: Can we visit your factory before place an order?
A3: We sincerely welcome you and your team to visit our factory to
check our products. We will arrange hotel and pick you up at the
airport / train station.
Q4: Do you charge sample cost?
A4: Sample charge is required, but we will deduct it from your
first order, but the order amount would be reached the specified
level of our company.
Q5: What is the payment terms?
A5: We accept T/T, L/C, D/P.
Q6: How many days for delivery?
A6: It all depends on your quantity, usually 15~40 days.
Q7: How many colors for powder painting?
A7: We have blue, Bitzer colour, Black and grey for your choice.
Q8: What is the packiing method?
A8: Each product will be put in a wooden case on pallet.
Q9: How about the warranty?
A9: We will offer one year warranty and life-time service of our
products.
|
|
